| LED Backlight Strip |
 |

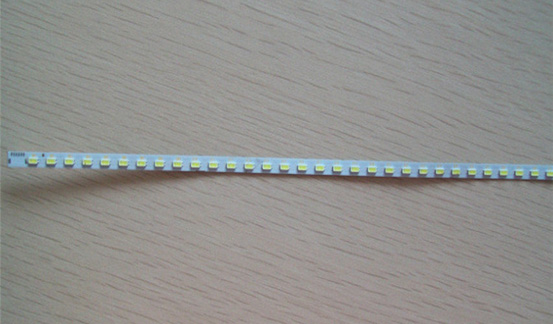

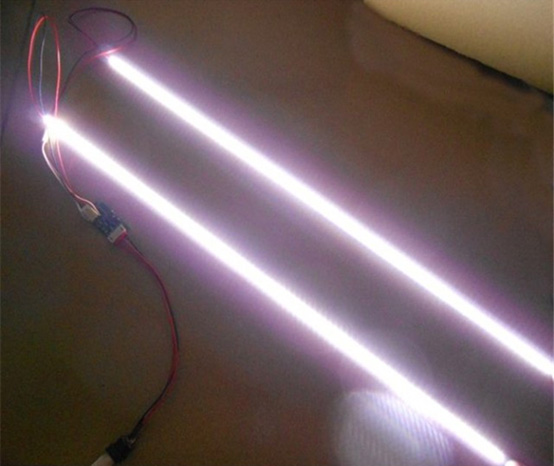

| Description: various size lcd screen 12v led backlight strip kit replace ccfl backlight lamp 15.6  Package: 1x LED strip 1x converter 1x connection cable Installation: If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ; If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connectwith the ON / OFF. In simple terms, tThe original high voltage power supply isdisconnected,instead of the inverter, In the original high-pressure front to take power VIN : voltage ENA: on/off DIM: ADJ adjust brightness GND: connecting Ground Different size for different display screen: for laptop screen: 10inch Led backlight,length: 220mm 12inch Led backlight,length: 255mm 12inch-Wide Led backlight,length:268mm 13inch Led backlight,length:270mm 14inch Led backlight,length:290mm 14inch-Wide Led backlight,length:310mm 15inch Led backlight,length:310mm 15.4inch Led backlight,length: 336mm For monitor screen: 15inch led strip kit: length:325mm 17inch led strip kit:length:355mm 19inch led strip kit: length:395mm 19inch wide panel led strip kit :length:425mm 18.5inch led strip kit: length:420mm 20.1inch wide led strip kit: length:455mm 22inch led strip kit:length:490mmmm 23.6inch led strip kit,length:530mm 24inch led strip kit: length:540mm |
